Injection Molding Resistance to Abrasive Fillers

Common Abrasive Fillers and Their Effects

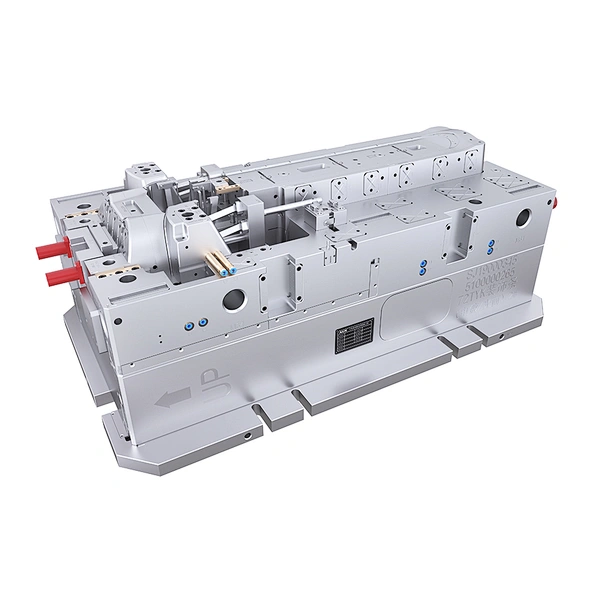

Impact of Abrasive Fillers on Mold Design and Maintenance

The presence of abrasive fillers in injection molding materials requires thoughtful consideration during mold design and ongoing maintenance to ensure optimal tool performance and longevity.

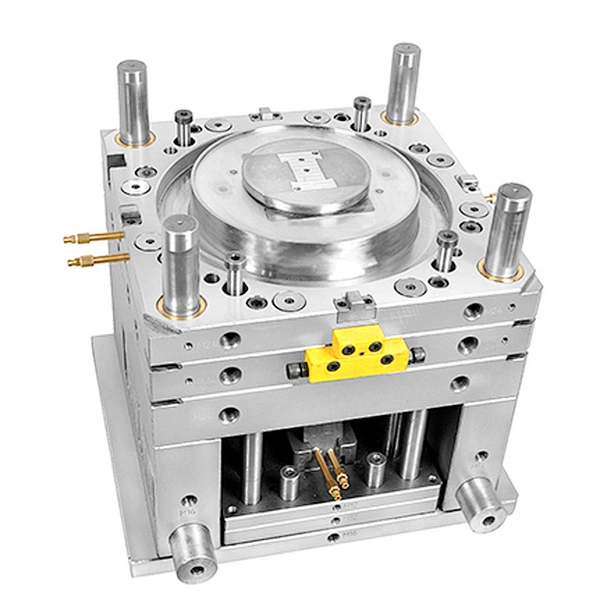

Design Considerations

Material Selection: Given the aggressive nature of abrasive fillers, selecting mold steels with high hardness and wear resistance—typically alloy steels like H13 or S7—is essential. Carbon steel is generally unsuitable due to its low resistance to abrasion.

Surface Treatments: Applying surface hardening treatments such as nitriding, PVD coatings, or chrome plating can drastically enhance resistance to filler-induced wear. These treatments help maintain surface finish and dimensional accuracy over extended production runs.

Cooling System Design: Efficient cooling is vital to minimize thermal fatigue caused by the cyclic heating and cooling of molds. Abrasive fillers exacerbate thermal stress by promoting localized wear, so uniform cooling channels and advanced cooling technologies help preserve mold integrity.

Cavity and Core Geometry: Complex geometries with sharp corners or thin walls may concentrate resin flow velocity, increasing abrasive impact. Designers should aim for smooth transitions and uniform wall thickness to reduce erosion risk.

Maintenance Strategies

Regular Inspection: Frequent mold inspections using visual and microscopic analysis detect early signs of abrasive wear, such as surface roughness, micro-cracking, or corrosion pits. Early detection enables timely intervention before major damage occurs.

Polishing and Surface Repairs: Periodic polishing restores surface smoothness, reducing friction and minimizing resin buildup, which can otherwise accelerate abrasive wear. In some cases, re-machining or applying additional surface coatings may be required.

Monitoring Resin Formulations: Collaborating with material suppliers to optimize filler type and concentration can help balance part performance with mold longevity. Lower filler loadings or alternative reinforcements may reduce abrasive effects without compromising product quality.

Cycle Time Optimization: Reducing cycle times, where possible, decreases the thermal load on molds, mitigating fatigue and surface degradation accelerated by abrasive fillers.

Incorporating abrasive fillers into polymers demands a proactive approach in mold design and maintenance. Selecting the right steel, applying protective surface treatments, and implementing thorough inspection and upkeep routines are critical to ensuring the mold withstands abrasive wear while maintaining high-quality production standards.

Wear Mechanisms in Mold Steel

Surface Erosion: High-velocity resin flow loaded with abrasive fillers causes gradual removal of the mold’s surface layer, reducing cavity precision and finish.

Micro-Scratching and Cracking: Repeated mechanical abrasion creates micro-scratches that act as stress concentrators, which over time can initiate cracks and lead to premature tool failure.

Thermal Fatigue: The combined effect of abrasive wear and cyclic heating/cooling causes surface embrittlement and spalling, particularly in steels with insufficient hardness or inadequate heat treatment.

Performance of Mold Steels Against Abrasive Fillers

Carbon Steel: Generally the least resistant to abrasive fillers due to its lower hardness and wear resistance. Using carbon steel molds with glass-filled or mineral-filled plastics leads to rapid degradation, making it unsuitable for abrasive materials.

Stainless Steel: Offers moderate resistance to abrasive fillers, particularly grades like 440C, which combine corrosion resistance with higher hardness. Stainless steel molds perform better in abrasive and corrosive conditions but may require slower cycle times due to lower thermal conductivity.

Alloy Steel: The top choice for abrasive filler applications. Heat-treated alloy steels like H13 and S7 deliver high hardness and toughness, effectively resisting erosion and fatigue. Their performance can be further enhanced through surface treatments such as nitriding, physical vapor deposition (PVD) coatings (e.g., TiN, CrN), or chrome plating, which significantly increase surface hardness and wear life.

Surface Treatment Enhancements

To maximize mold durability against abrasive fillers, manufacturers often apply specialized surface treatments:

Nitriding: Introduces a hard, wear-resistant layer without altering core toughness or dimensions, reducing surface erosion and crack initiation.

PVD Coatings: Thin, extremely hard coatings such as titanium nitride (TiN) or chromium nitride (CrN) improve abrasion resistance and reduce friction, extending tool life even under aggressive filler loads.

Chrome Plating: A traditional method that increases both corrosion and wear resistance, especially valuable in packaging and automotive mold applications.

For injection molding involving abrasive fillers, alloy steels with advanced surface treatments offer the best combination of wear resistance, toughness, and long-term performance. Stainless steel may be considered when corrosion resistance is also critical, but carbon steel should be avoided in these demanding environments to prevent costly downtime and premature tool replacement.

Wear Resistance of Injection Molding Steels Against Abrasive Fillers

Selecting the right steel for injection molds exposed to abrasive fillers is crucial to maximize tool life and maintain product quality. The wear resistance of mold steels varies significantly based on their hardness, chemical composition, and any applied surface treatments. Below is a comparison of the three primary steel types used in injection molding, focused on their ability to withstand abrasive wear:

Carbon Steel

Carbon steel’s lower hardness and lack of inherent corrosion resistance result in poor performance against abrasive fillers. Using carbon steel molds with glass or mineral-filled polymers accelerates erosion and surface damage, leading to frequent tool refurbishment or replacement. This steel is best reserved for non-abrasive, low-volume applications.

Stainless Steel

Grades such as 440C stainless steel strike a balance between hardness and corrosion resistance, making them more suitable for abrasive-filled and corrosive materials. While stainless steel molds resist corrosion well, their lower thermal conductivity and higher machining difficulty can increase production time and cost. Application of surface treatments like nitriding or PVD coatings can significantly improve their abrasion resistance.

Alloy Steel

Alloy steels like H13 and S7 are specifically engineered to handle the demanding conditions posed by abrasive fillers. With high hardness and excellent toughness, these steels resist surface erosion and thermal fatigue. Furthermore, surface treatments such as nitriding, physical vapor deposition (PVD) coatings (e.g., titanium nitride), or chrome plating enhance wear resistance, reduce friction, and extend tool life. This makes alloy steel molds the preferred choice for long production runs involving abrasive polymers.

For injection molding processes involving abrasive fillers, alloy steels with appropriate surface treatments provide the best wear resistance and longevity. Stainless steel offers a viable alternative for environments requiring corrosion resistance alongside moderate abrasion protection. Carbon steel should generally be avoided in these scenarios to prevent premature tool failure and costly downtime.
