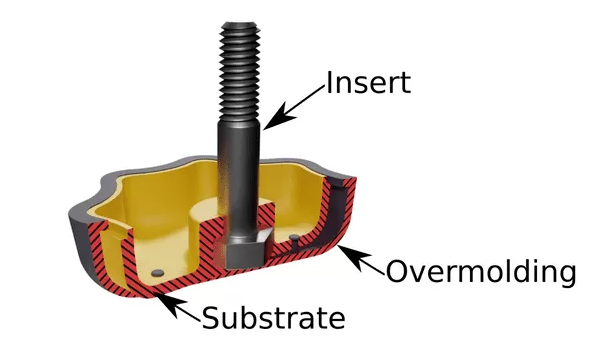

Insert Molding vs. Overmolding

In high-precision manufacturing environments, the ability to produce complex, multi-material components with integrated functionality is crucial for meeting evolving design demands. Two such techniques—insert molding and overmolding —stand out due to their capacity to merge different materials into a single functional unit during the injection molding process.

At HOPO MOULD (//hopomould.com/ ), we specialize in delivering precision-engineered solutions using both insert molding and overmolding technologies. This article provides an in-depth comparative analysis of these two methodologies, covering:

• Process mechanics
• Material compatibility considerations
• Tooling requirements
• Bonding mechanisms
• Design constraints
• Industry-specific applications
• Cost-efficiency models

By exploring these aspects in detail, we aim to equip engineering teams with the tools necessary to make informed decisions when selecting between these two advanced molding strategies.

1. Insert Molding - Embedding Components Within a Plastic Matrix

Definition and Process Flow

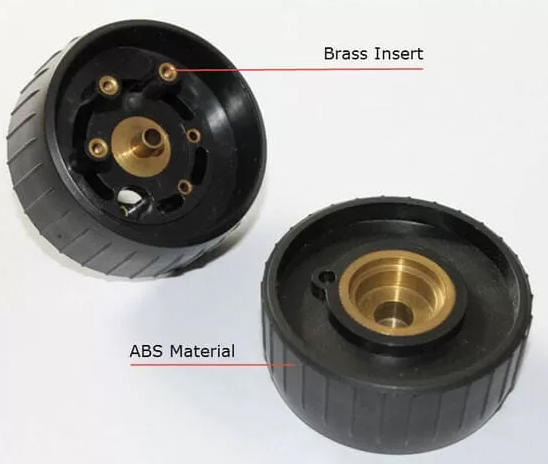

Insert molding is a variant of injection molding wherein pre-formed inserts—typically metallic (e.g., brass, stainless steel, aluminum) but also ceramic or composite—are placed into a mold cavity before injecting thermoplastic resin around them. The result is a monolithic part where the insert becomes an integral component of the final structure.

Step-by-Step Process:

1. Insert Placement : Inserts are either manually loaded or robotically fed into the mold cavity.
2. Mold Closure : The mold closes, securing the insert via mechanical clamping or gravity-based retention features.
3. Resin Injection : Molten thermoplastic material is injected under high pressure into the mold cavity.
4. Cooling and Solidification : The polymer solidifies around the insert.
5. Ejection : The completed part is ejected from the mold.

Key Mechanical and Structural Considerations

• Thermal Expansion Mismatch : Differences in thermal expansion coefficients between the insert and polymer can cause internal stress, warpage, or delamination if not properly accounted for in design.
• Retention Features : Undercuts, knurls, grooves, or threaded profiles on the insert enhance mechanical interlocking with the polymer matrix.
• Insert Tolerance Management : Tight control over insert positioning is critical to ensure dimensional accuracy and avoid misalignment or flash issues.

Material Compatibility

Insert molding typically involves bonding thermoplastics (ABS, PC, POM, PA6, etc.) with metal or rigid substrates. Unlike overmolding, there is no chemical adhesion required; instead, mechanical anchoring dominates the bond strength.

Advantages

• Eliminates post-molding assembly operations (e.g., fastening, welding).
• Increases structural rigidity and load-bearing capability.
• Enhances electrical conductivity or heat dissipation in hybrid components.
• Reduces overall part count and improves reliability.

Limitations

• Higher tooling complexity due to insert loading mechanisms.
• Potential for insert misalignment or damage during ejection.
• Limited flexibility in material pairing compared to overmolding.

Typical Applications

• Automotive connectors and sensor housings
• Medical instruments requiring sterilization-resistant inserts
• Consumer electronics with embedded antennas or conductive paths
• Industrial hardware with threaded inserts

Multi-Stage Fusion of Dissimilar Materials - Overmolding

Definition and Process Flow

Overmolding is a sequential injection molding technique involving at least two distinct materials. The first layer, known as the substrate, is molded first, then transferred (manually or via automation) to a second mold cavity where the secondary material—often a thermoplastic elastomer (TPE), silicone, or soft plastic—is molded over it.

Step-by-Step Process:

1. Substrate Molding : The base component is formed using standard injection molding.
2. Transfer to Second Mold : The substrate is moved to a second mold cavity designed to accommodate overmolding.
3. Second Shot Injection : A second material is injected, bonding either chemically or mechanically with the substrate.
4. Cooling and Ejection : The dual-material part cools and is ejected as a single unit.

Bonding Mechanisms

The success of overmolding hinges on achieving strong adhesion between the two materials. There are two primary types of bonding:

a) Mechanical Bonding

• Achieved through surface textures, undercuts, or geometric features on the substrate that allow the overmolded material to lock in place.
• Ideal when chemical compatibility is low or unknown.

b) Chemical Bonding

• Requires material compatibility between the substrate and overmold.
• Often facilitated by selecting resins with similar polarities or using primers/adhesion promoters.
• Offers superior durability and sealing performance.

Material Pairing Examples

Advantages

• Enables integration of soft-touch surfaces, seals, and aesthetic elements.
• Eliminates need for secondary bonding agents or assembly steps.
• Allows for color differentiation and branding opportunities.
• Provides enhanced sealing, grip, and ergonomic benefits.

Limitations

• Increased cycle time due to multiple molding stages.
• More complex tooling and mold design.
• Requires strict material compatibility testing.
• Higher initial setup costs.

Typical Applications

• Handheld medical devices with non-slip grips
• Sealed electronic enclosures with integrated gaskets
• Kitchen appliances with ergonomic handles
• Wearable fitness trackers with tactile buttons
• Automotive interior components with soft-touch finishes

Insert Molding vs. Overmolding Comparative Analysis

Design Considerations for Both Processes

For Insert Molding:

• Ensure proper draft angles and clearance for insert placement.
• Incorporate retention features like knurling or undercut geometry.
• Account for differential shrinkage between insert and polymer.
• Validate insert alignment mechanisms to prevent off-center parts.

For Overmolding:

• Design for undercuts and textures to promote mechanical bonding.
• Select compatible material pairs or use bonding agents.
• Optimize gate location for uniform flow and minimal air entrapment.
• Evaluate thermal resistance of the first shot during second shot injection.

Cost Implications and ROI Analysis

While both processes offer long-term cost savings by reducing assembly and labor expenses, the initial investment varies significantly.

Insert Molding:

• Lower tooling cost than overmolding.
• Faster cycle times improve throughput.
• Best suited for high-volume runs with consistent design.

Overmolding:

• Higher upfront tooling and development costs.
• Longer cycle times due to dual-stage processing.
• Justified by value-added features like sealing, comfort, and aesthetics.

A comprehensive cost-benefit analysis should consider:

• Part complexity
• Annual production volume
• Required tolerances
• Post-processing needs
• Material sourcing and logistics

Industry-Specific Recommendations

Automotive Sector

• Insert Molding : Used for integrating sensors, terminals, and brackets into plastic housings.
• Overmolding : Preferred for steering wheel grips, gear shift knobs, and sealed connector housings.

Medical Devices

• Insert Molding : Ideal for surgical tools with embedded stainless steel components.
• Overmolding : Used for device housings with sealed interfaces and patient-contact areas requiring antimicrobial properties.

Consumer Electronics

• Insert Molding : Applied in cases requiring embedded antennas or PCB supports.
• Overmolding : Utilized for waterproof casings, remote controls, and wearable device straps.

Industrial Equipment

• Insert Molding : Handles, levers, and switches with reinforced threads.
• Overmolding : Control panels with tactile buttons and protective bumpers.

Choosing the Right Technology for Your Application

Both insert molding and overmolding are powerful techniques that enable manufacturers to create highly functional, integrated components. The choice between them depends on the specific goals of your project:

• Choose Insert Molding when you require robust mechanical integration, structural reinforcement, or electrical connectivity within a plastic housing.
• Choose Overmolding when your priority is enhancing ergonomics, aesthetics, sealing performance, or combining materials for unique tactile or visual effects.

At HOPO MOULD , our team of experienced engineers works closely with clients to evaluate design intent, material compatibility, and production scalability. Whether your project demands the strength of metal-plastic hybrids or the comfort of soft-over-hard designs, we provide end-to-end support—from prototyping to mass production.

To explore which method best suits your application, visit us at //hopomould.com/ or contact our technical team directly at info@hopomould.com .
